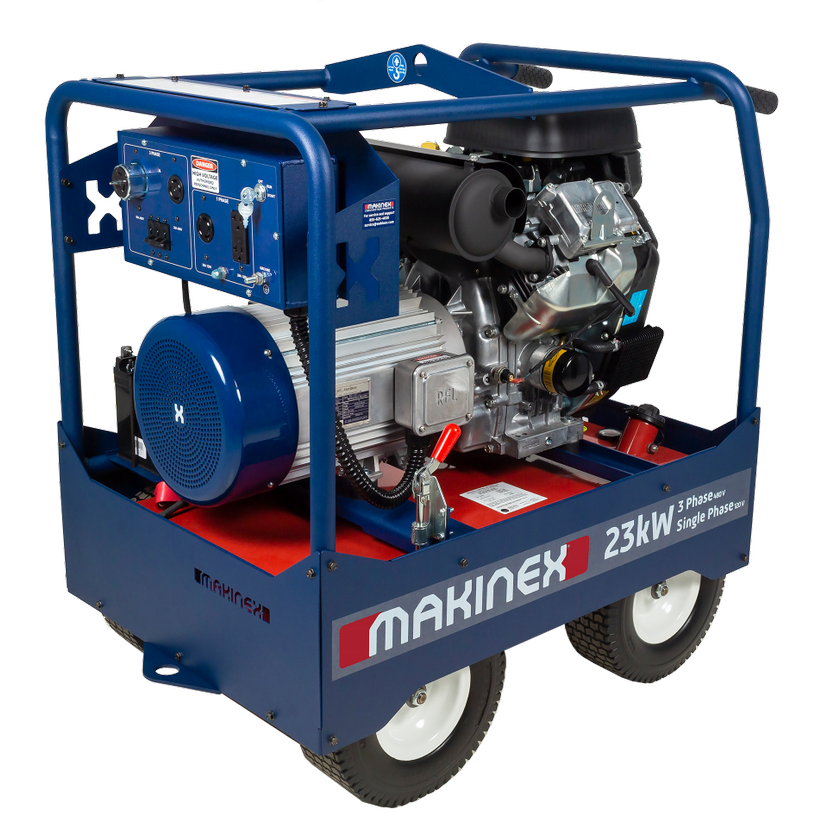

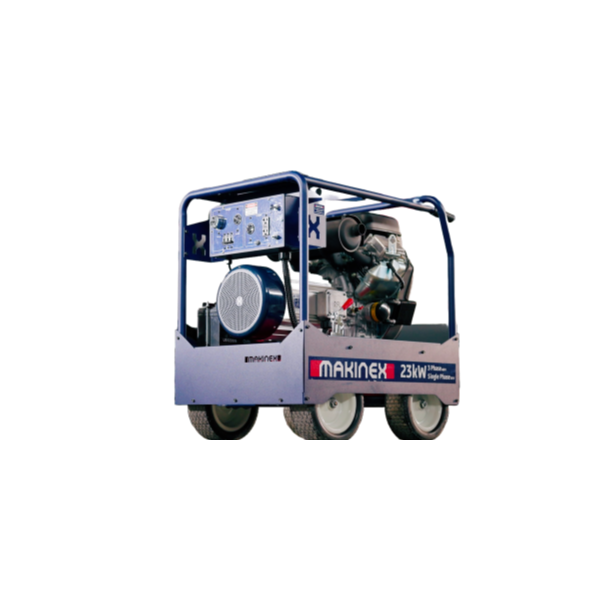

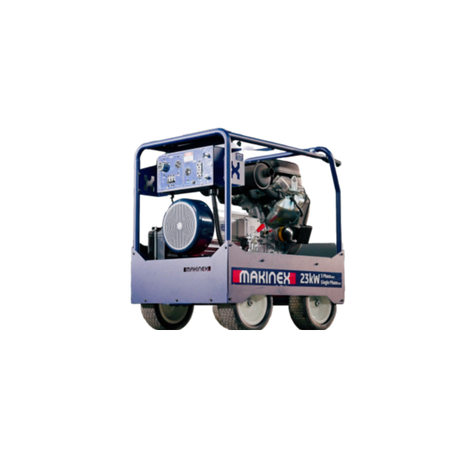

Makinex 23 kW Gasoline Generator, 480V

A gasoline generator running a Briggs & Stratton Vanguard V-twin that puts out 480V three-phase power plus 120V single-phase. It is compact enough to fit through standard doorways and sits on four large wheels, so it can be rolled into buildings. The 480V and 120V circuits are independent, so the three-phase output holds steady when single-phase loads are added.

• Briggs & Stratton Vanguard V-twin, 993 cc, electric key start, 13.2 gal tank
• 480V three-phase output of 22 kW max (20.75 kW continuous) plus 2.2 kW of 120V single-phase
• 50A, 30A and 20A outlets with no voltage selector
• Permanent-magnet brushless alternator on independent 120V and 480V circuits
• Four large wheels, 3-year warranty

Specifications

• Model / SKU: GEN-23P-MS-480
• Dimensions: 43 x 25 x 40 in
• Weight: 573 lb
