Makinex 16 kW Gasoline Generator, 480V - USA Spec

Special Order
SKU: GEN-16P-MS-480
$10,900.00
🚚 Free Shipping Eligible — orders $99+
🕒 Special Order Item
Ships in 5-7 business days. Order now to reserve stock.

Got questions?

Feel free to get in touch

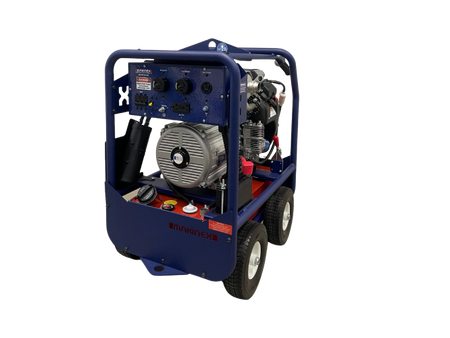

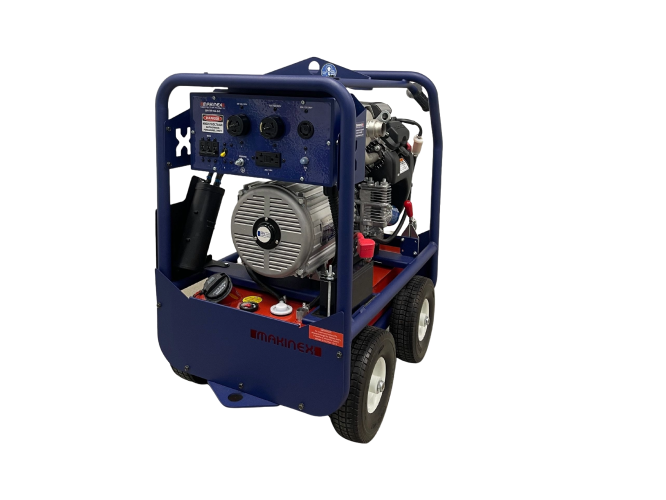

The 480V version of Makinex compact 16 kW gasoline generator, built around a Honda GX690 twin. It delivers 480V three-phase power alongside a 110V single-phase circuit, and it is CARB certified for sale in all 50 states. It suits powering 480V concrete, cutting and finishing equipment on site.

  • Honda GX690 688 cc twin-cylinder engine with electric key start
  • 480V three-phase output of 12 kW max (11.5 kW continuous) plus 110V single-phase circuit of 2.2 kW max
  • Permanent-magnet alternator
  • 9.0 gal tank, about 0.92 gal/hr at 50% load
  • CARB certified for sale in all 50 states

Specifications

  • Model / SKU: GEN-16P-MS-480
  • Dimensions: 30.4 x 20.8 x 35.5 in
  • Weight: 344 lb
