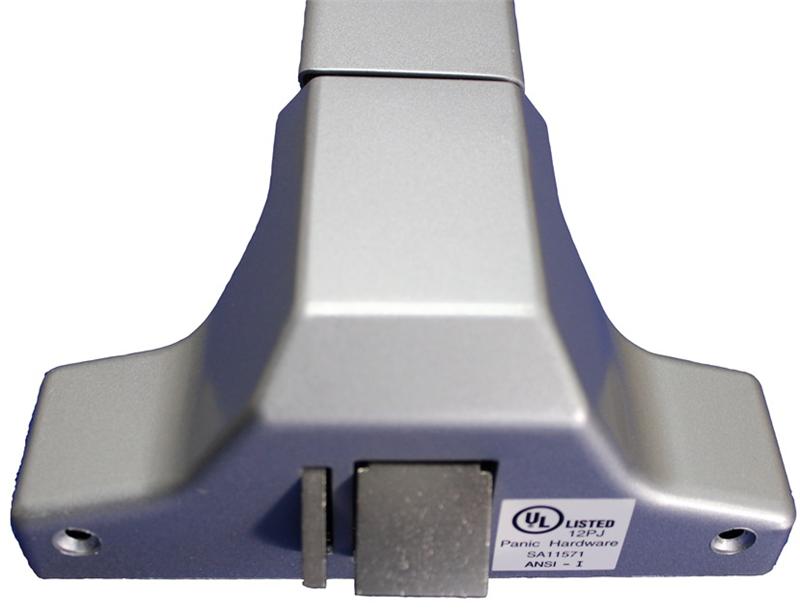

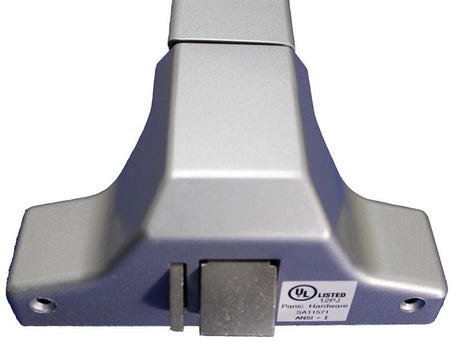

Lockey PB1100 Touch Bar Rim Panic Exit Device Painted Aluminum Finish 36" Door

Special Order
SKU: LSPB-1136 AL
$181.88
-30% $259.84 $181.88
🚚 Free Shipping Eligible — orders $99+
Style
🕒 Special Order Item
Ships in 5-7 business days. Order now to reserve stock.

Got questions?

Feel free to get in touch


Lockey PB1100 touch bar style exit device is suitable for all doors (aluminum, hollow metal and wood) where there is no projection on the face. Can Be Used On Narrow, Medium And Wide Stile Aluminum Doors. A rim cylinder is not included and the PB1100 can be used in conjunction with any of the panic trims listed below.


Technical Information:
 - ANSI/BHMA A156.3 Series Grade 1 Certified
- Complies with ANSI A117.a ADA requirements
- UL/cUL Listed
- Narrow Stile 2 1/2 - Door Thickness: 1 3/4 (standard)
- Device Length: 33 (36 doors)
- Field-sizable - Can be cut to 27
- Latch Bolt: Stainless Steel powder metallurgy with 11/16 throw
- Deadlocking Latch: Stainless Steel powder metallurgy with 9/16 throw
- Weather resistant
- Aluminum Finish
- Fire Rated (FR) Available - UL/cUL Listed 3 hr. fire-rated 10C, UBC 7-2 (1997)
- Dogging not available on Fire Rated
