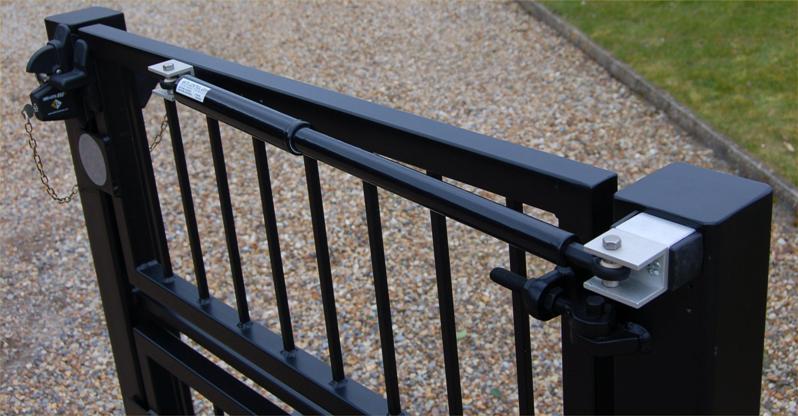

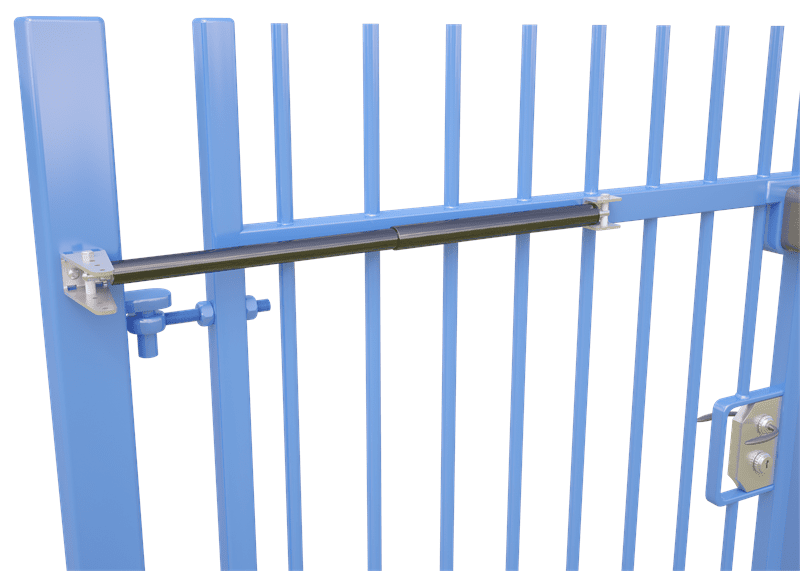

The LockeyUSA TB200 Turtle Back Hydraulic Gate Closer from LockeyUSA is a convenient gate closer system with superior performance, improved seals, and high-performance cylinder. Ideal for pedestrian gates such as hotel pool and beach access gates, parking lot and office complex gates, as well as barrier gates, this hydraulic gate closer features a closing speed with a stable and steady closing action. Use this reliable, self-closing system with an electric strike, maglock, or keyless combination lock for convenient security.
Closes small and large gates from 50-125 lbs.
Hydraulic/Nitrogen Gas controlled closing speed
Installs on top/middle/bottom
Works with left and right hand gates
Mounts on opening side of gate
Pushes the gate closed
Mounting brackets and fitting bar included
Not compatible with gates less than 30 inches wide
To retain product warranty & restrict gate opening angle, a gate stop must be installed. For The GS-90 Gate Stop, See Related Products Section Below
Gate Weight: 50-125 lbs.
Gate Width: 30-52″
Max. Opening Angle: 90 degrees
Min. Operating Temperature: 15 degrees Fahrenheit*
Max. Operating Temperature: 122 degrees Fahrenheit*
Type of Gate Material: Vinyl, Steel, Wood, Chain Link**
Closing/Latch Method: Hydraulic/Nitrogen Gas
Material: Steel
Color: Black
Hinge Arrangements: In-line or Offset
Opening Pressure: Approx. 3-7 lbs.
*Operation of the closer in temperatures below or above the minimum and maximum operating temperatures may result in improper operation or complete failure of the closer.
**TB200 can be mounted on chain link gates with the TB-LINX Mounting Kit. TB-LINX sold separately, see Related Products Section Below
